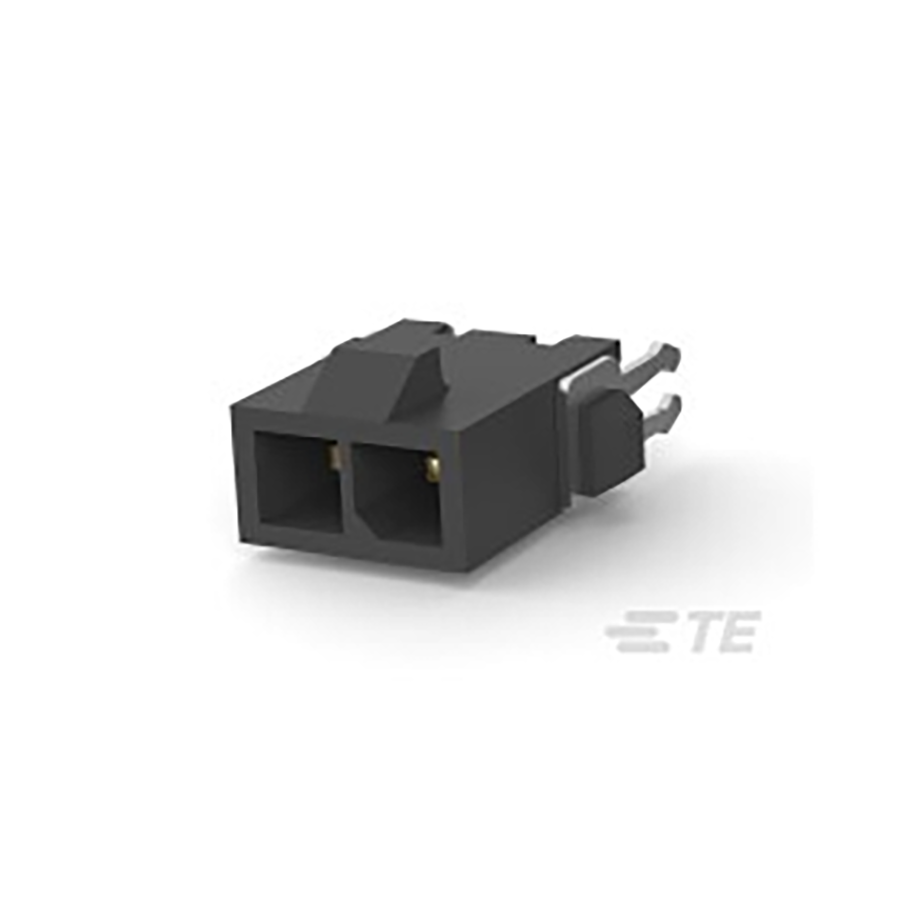

2-1445094-2
Manufacturer:
TE Connectivity
Mfr.Part #:
2-1445094-2
Datasheet:
Description:
IC and Component Sockets Through Hole Pin Number of Positions:2 Number of Rows:1 Pitch:3 mm Row Spacing:3 mm
| Parameter | Value |
|---|---|
| Length | 10.14 mm |
| Width | 3.86 mm |
| Termination | Solder |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -40 °C |
| Height | 9.24 mm |
| Packaging | Tray |
| Voltage Rating | 250 V |
| Depth | 5.67 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Contact Plating | Tin, Gold |
| Contact Material(Contact Finish) | Brass |
| Pitch | 3 mm |
| Number of Terminals | 2 |
| Current Rating | 5 A |
| Flammability Rating | UL94 V-0 |
| Approvals | CSA |
| Orientation | Vertical |
| Operating Supply Voltage | 250 V |
| Lifecycle Status | Production (Last Updated: 4 days ago) |
| Color | Black |
| Number of Contacts | 2 |
| ELV | Compliant |
| Connector Type | Pin |
| Number of Positions | 2 |
| Number of Rows | 1 |
| Row Spacing | 3 mm |
| Housing Material | Nylon |
| Number of Ports | 1 |
| Fastening Type | Ramp |
| Circuit Application | Power |
| Connector System | Wire-to-Board |
| Contact Style | Pin |
| Max Voltage Rating (AC) | 250 V |
| Contact Current Rating | 5 A |
| Housing Color | Black |
| Plating | Gold |
| PCB Mounting Orientation | Vertical |
| PCB Thickness | 62 µm |
| Plating Thickness | 2.54 µm |
| Contact Gender | Male |
| Number of Power Positions | 2 |
| VDE Tested | Yes |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 4 days ago) |
| Sealable | No |
| Contact Retention | Without |
| Contact Finish - Mating | Gold |
Stock: 90
Distributors
pcbx
pcbxUnit Price$0.93210
Ext.Price$0.93210
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.93210 | $0.93210 |
| 10 | $0.79402 | $7.94020 |
| 25 | $0.75208 | $18.80200 |
| 50 | $0.71235 | $35.61750 |
| 100 | $0.67472 | $67.47200 |
| 300 | $0.63908 | $191.72400 |
| 500 | $0.60532 | $302.66000 |
| 1000 | $0.57334 | $573.34000 |
| 3000 | $0.54305 | $1629.15000 |
| 5000 | $0.51436 | $2571.80000 |
| 10000 | $0.48722 | $4872.20000 |
